Product introduction
The wire-wound filter element is made of spun fiber yarn precisely wound on the porous frame, and the filter layer winding density and filter hole shape are controlled to make different filter accuracy
Features
Has high filter load capacity
Filter element has good compatibility
It can effectively remove the suspended
pores and particles in the liquid. The filter pores are large outside and small inside, and have excellent deep filtering effect. A
variety of materials (absorbent cotton, glass fiber, polypropylene) meet the needs of various liquid filtration.

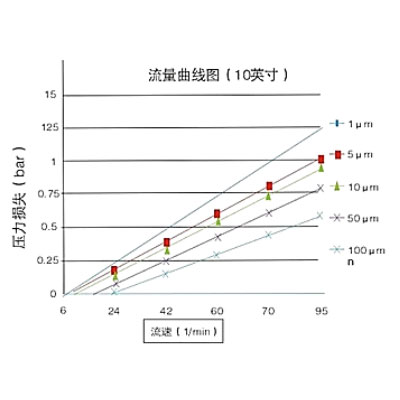

Technical Data Sheet
| Accuracy (μm) | 1 3 5 10 25 50 75 100 | ||
| length | 5 "10" 20 "30" 40 " | Operating temperature | <90 ℃ (absorbent cotton) |
| diameter | 65mm | *** Great temperature resistance | <120 ℃ (absorbent cotton) |
| Filter material | Polypropylene, absorbent cotton | *** Big import pressure | 5.1bar (25 ° C) |
| shell material | Polypropylene, stainless steel (304, 316L) | 2.4bar (60 ℃) | |
| Operating temperature | <60 ℃ (polypropylene) | It is recommended to replace the differential pressure | 1bar |
| *** Great temperature resistance | <90 ° C (polypropylene) | *** large differential pressure | 3.2bar (25 ℃) |
| Filtration area | 0.05 square meters / 10 " | interface | twenty one# |
